PTFE extruded tubes
Hollow, precision-extruded tubing supplied in continuous rolls or specified cut lengths. Dimensions are controlled through outside diameter, inside diameter and wall thickness.
OD · ID · wall thickness
Polymore product range
Precision-extruded PTFE tubes, liners and catheter tubes.
Virgin-grade PTFE fine-powder tubing manufactured in India using vertical paste extrusion technology for consistent dimensions, smooth surfaces and dependable performance.
Virgin-gradePTFE tubing
29–39 MPaTensile strength at 23°C
200–500%Elongation at break at 23°C
55–72Shore D hardness
0.05–0.20Coefficient of friction with steel

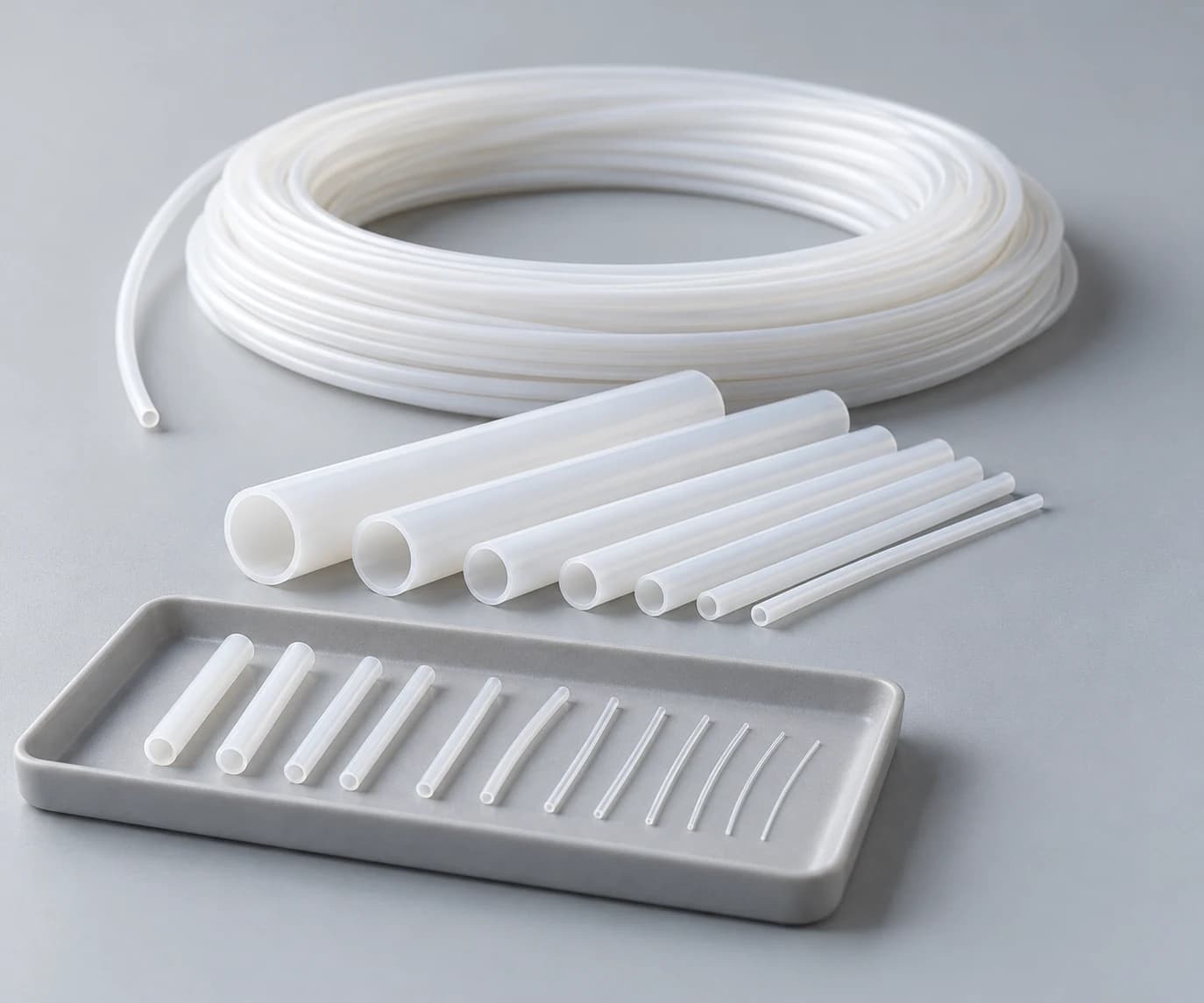

Manufactured forms
PTFE tubing for industrial and medical applications.
Specified by
OD · ID · wall thickness
PTFE catheter tubes
Catheter tubes in 14G, 16G, 17G, 18G, 20G, 22G, 24G and 26G for IV cannula, diagnostic and surgical equipment applications.
Gauge · application
Dimensional range
Standard sizes, with room to customise.
Share your target OD, ID, wall thickness, tolerance and order format. Additional dimensions can be developed against application requirements.
| Product | OD | ID | Wall | Tolerance |
|---|---|---|---|---|
| PTFE tubes / liners | 1.00–6.00 mm | By specification | 0.20–1.00 mm | By specification |
| PTFE catheter tubes | By gauge | By specification | By specification | By specification |
Catheter gauges: 14G, 16G, 17G, 18G, 20G, 22G, 24G, 26G. Inner diameter, dimensional tolerances and custom sizes are confirmed against the application specification.
Material performance
PTFE tubing properties for demanding operating conditions.
Nominal values vary with tube sizes and resin properties and do not constitute a warranty. Confirm final requirements for the application.
Minimum working temperature−270°CNominal
Maximum working temperature+260°CNominal
Specific gravity2.14–2.19ASTM D792
Ultimate tensile strength at 23°C14–34 MPaASTM D638
Elongation at break at 23°C200–500%ASTM D638
Concentricity≥85%Nominal
Hardness50–65Shore D
Melting point327°CNominal
Supply options
Configured for your production process.

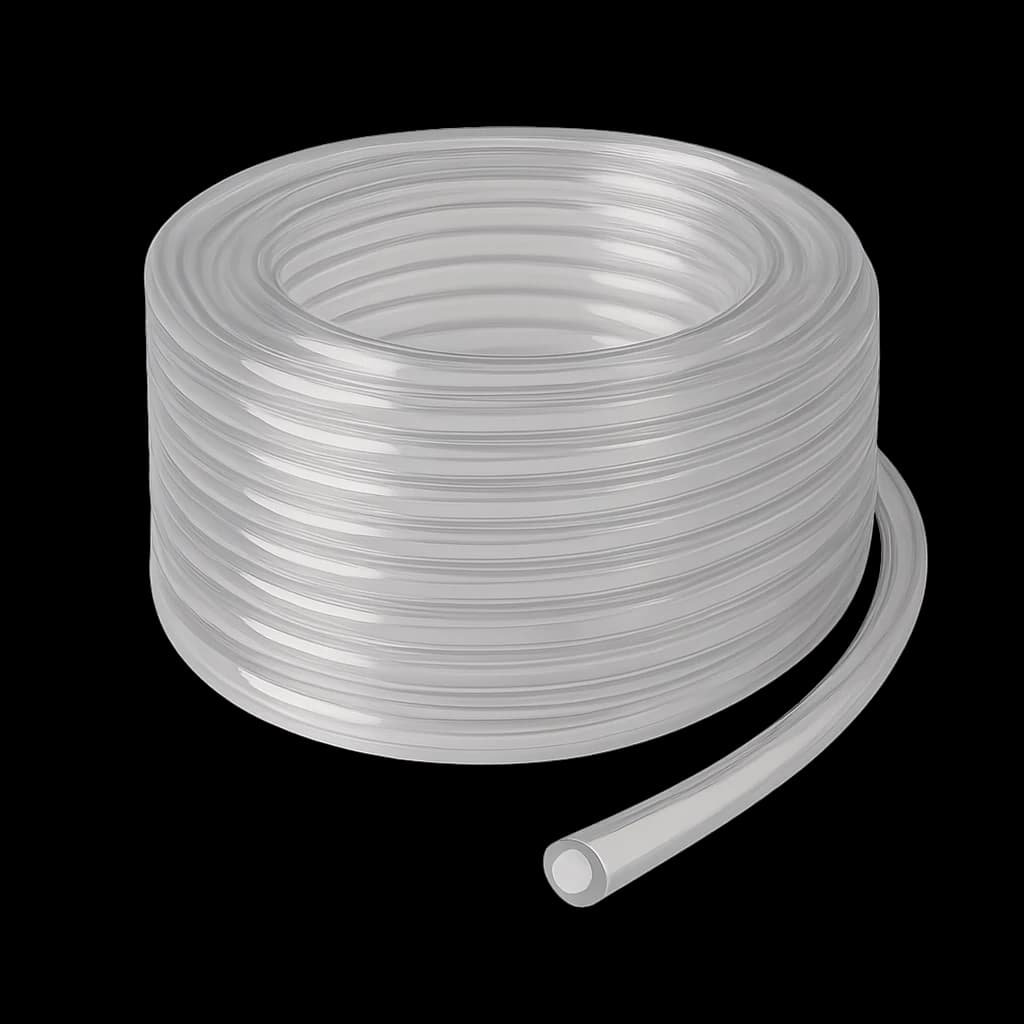

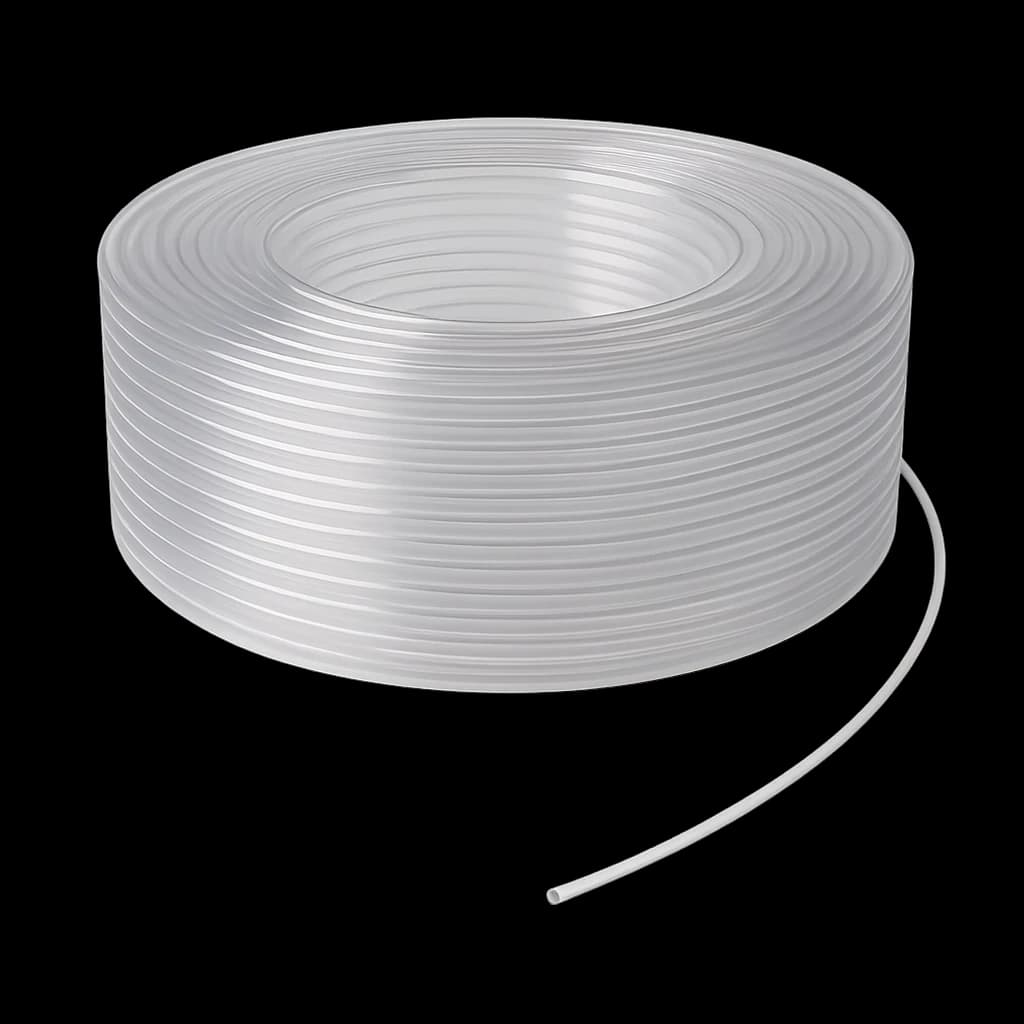

PackagingContinuous-length supply.
Cut lengthCut-to-length supply is available on request.
ColoursNatural is standard; other colours can be produced on demand.
CustomisationAdditional dimensions can be developed for qualified requirements.
Material compliance
Fine-powder grades selected with care.
Material selection is matched to the compliance needs agreed for the application and purchase specification.
- FDA 21 CFR 177.1550
- EU Regulation No. 1935/2004
- EC Regulation No. 1895/2005
- RoHS Directive 2011/65/EU
- REACH compliant
- USP Class VI
- PFOA free
From product to application
See how the specification changes by sector.
This page defines the core PTFE tubing range. Sector pages cover the forms, operating priorities and use cases relevant to each industry.
View all applicationsTechnical FAQs
Useful answers before you specify.
01What information should I provide for a tubing enquiry?
Share the target outside diameter, inside diameter or wall thickness, dimensional tolerances, required length or roll format, colour, resin or compliance needs, operating conditions and estimated quantity. A drawing is helpful for custom requirements.
02Which catheter tube gauges are available?
PTFE catheter tubes are offered in 14G, 16G, 17G, 18G, 20G, 22G, 24G, 26G for IV cannula, diagnostic and surgical equipment applications. Confirm dimensions for the selected gauge.
03What are the core performance benefits of PTFE tubing?
PTFE offers strong chemical resistance, a broad operating-temperature range, low friction, a non-stick surface and excellent resistance to weathering. Suitability must still be confirmed against the conditions of the specific application.
04What standard tube sizes are available?
PTFE tubes and liners are offered with an OD of 1.00–6.00 mm and wall thickness of 0.20–1.00 mm. Inner diameter, dimensional tolerances and custom sizes are confirmed against the application specification.
05How can the product be supplied?
PTFE tubes can be supplied in continuous lengths. Cut-to-length supply is available on request, and packaging can be discussed against production and handling requirements.
06Which material compliances are available?
Our fine-powder selection process supports grades compliant with FDA 21 CFR 177.1550, relevant EU food-contact regulations, RoHS, REACH and USP Class VI requirements. PFOA-free material options are also available.
07How are dimensional tolerances confirmed?
The published ranges are a starting point. Final tolerances depend on the selected dimensions, resin properties and application requirements, and should be confirmed in the approved specification before production.
08Can non-standard dimensions or colours be produced?
Yes. Natural is the standard colour, while other colours and additional dimensions can be developed for qualified requirements. Contact our technical team with the target specification and expected volume.
